Ⅰ. Usage & application scope

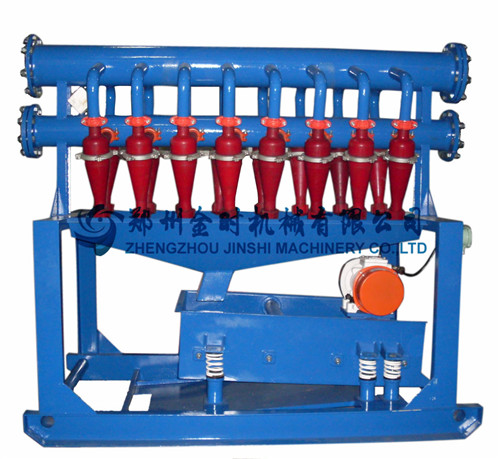

JZQJ series Desilter is a key member of solids control equipments of drilling fluid that efficiently handle the desander underflow.Its solids control capacity is 30%~50% higher than the past desilter,and it can lead to high drilling speed with low cost.
As a solids control equipment of the third stage in drilling operation,desilter is used to remove harmful solid particles of 20-40μm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration,by use of working principle of centrifugal subsidence.
At present time, three types JZQJ100×12,JZQJ100×14 and JZQJ100×16,are available,and we can add or reduce the swirler number according to the customer’s requirements.
Ⅱ. Main parameters
Model | JZQJ100×12 | JZQJ100×14 | JZQJ100×16 |
Cyclone cylinder diameter | 100 mm | 100 mm | 100 mm |
Working pressure | 0.2～0.45 MPa | 0.2～0.45 MPa | 0.2～0.45 MPa |
Capacity | 160-200 m3/h | 200-220 m3/h | 200-240 m3/h |
Screen size | 1240×585 mm | 1240×585 mm | 1240×585 mm |
Screen spec | 120-200 mesh | 120-200 mesh | 120-200 mesh |
Inlet diameter | 6″ | 6″ | 6″ |
Outlet diameter | 8″ | 8″ | 8″ |
Motor power | 0.5 kW | 0.5 kW | 0.5 kW |
Weight | 720 kg | 740 kg | 780 kg |
Overall dimensions | 2546×1136×2085 | 2646×1136×2085 | 2866×2018×2085 |
