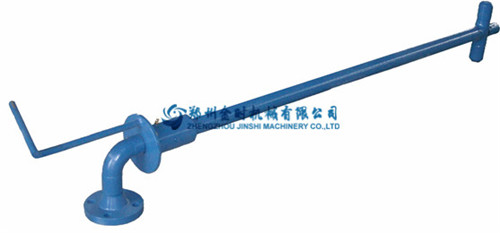

JNQ series mud gun

Time：2019-05-07


I. Usage & application range

JNQ series mud gun is an important part of drilling fluid solid control system. It can used to agitate drilling fluid in tank by pumped-in drilling fluid under certain pressure and flow rate. The mud gun can agitate fluid in dead corners where mechanical agitators cannot reach, and mix the drilling fluid even. It also can used to clean out deposited mud in tank bottom.

Drilling fluid under certain pressure and flow rate is taken into the mud gun by centrifugal sand pump, and spouts out through the jet nozzle,then it can be agitated and mixed by turning the rotary handle.It also can be used to clean out the deposited sand at tank bottom.

II. Structure

Adopting rolling bearing theory, the mud gun is flexible to rotate, with the adjusting range is close to 360^o. Method used for sealing downhole instruments is adopted here to make the seal reliable and long-life.

III. Main parameters

Model	JNQ-80-1	JNQ-80-6.4	JNQ-50-1	JNQ-50-6.4
Discharge capacity	60 m³/h	60 m³/h	50 m³/h	50 m³/h
Nominal diameter	80 mm	80 mm	50 mm	50 mm
Working pressure	≤1 MPa	≤6.4 MPa	≤1 MPa	≤6.4 MPa
Adjustable range	0～330°	0～330°	0～330°	0～330°
Length	According to the mud tank depth
Weight	55kg	70kg	55kg	65kg
